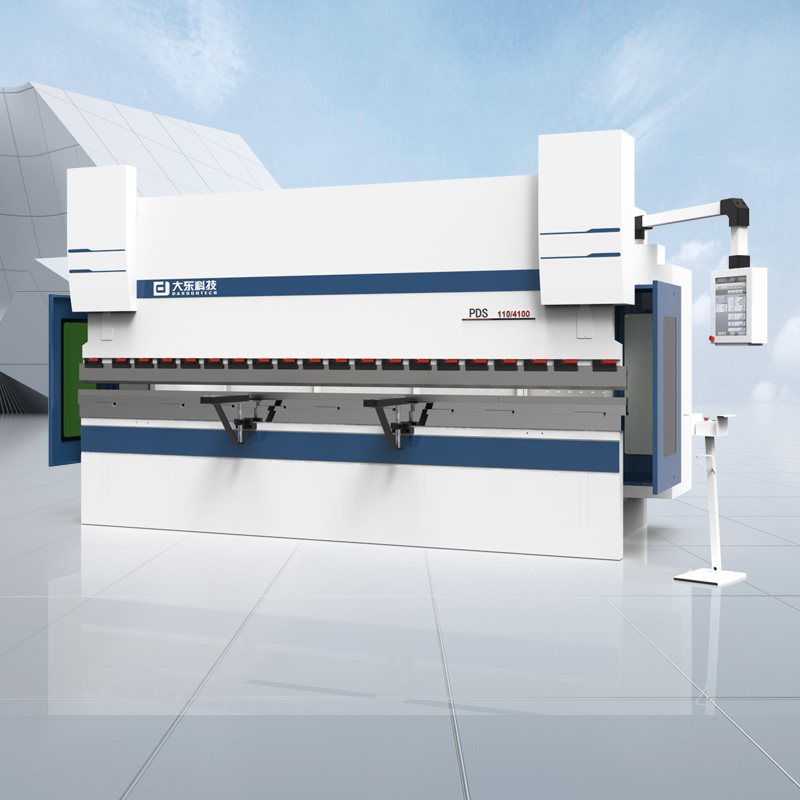

PDS SERIES

Holistic welding Structure
Rexroth closed-loop hydraulic system
FOGOR linear encoder to detect synchronization accuracy
CNC-controlled mechanical crowning
High efficiency main servo motor, energy saving and environmental protection (about 30% energy saving)
PDS SERIES

Holistic welding Structure
Rexroth closed-loop hydraulic system
FOGOR linear encoder to detect synchronization accuracy
CNC-controlled mechanical crowning
High efficiency main servo motor, energy saving and environmental protection (about 30% energy saving)

Model		Unit	PDS- 60/2000	PDS- 80/2500	PDS- 110/3200	PDS- 110/4100	PDS- 170/3200	PDS- 170/4100	PDS- 250/3200	PDS- 250/4100
Nominal Force		KN	600	800	1100	1100	1700	1700	2500	2500
Bending Width		mm	2000	2500	3200	4100	3200	4100	3200	4100
Column Distance		mm	1700	2000	2700	3600	2700	3600	2700	3600
Open Height		mm	370	425	525	525	525	525	560	560
Throat Depth		mm	300	320	400	400	400	400	400	400
Cylinder Stroke		mm	160	160	250	250	250	250	300	300
Main Motor Power		KW	6	6	8.7	8.7	10.8	10.8	21.4	21.4
Oil Volume		L	160	180	280	280	280	280	420	420
Moving Speed	Approaching	mm/s	140	150	180	180	170	170	130	130
	Working	mm/s	20	15	14	14	10	10	12	12
	Returning	mm/s	170	130	150	150	120	120	130	130
LxWxH	Length	mm	2670	2980	3700	4600	3720	4620	3740	4640
	Width	mm	1360	1460	1665	1665	1740	1740	1940	1940
	Height	mm	2410	2435	2625	2675	2675	2725	3060	3060
Weight		KG	4670	5350	7720	9880	9800	11410	13530	15370
