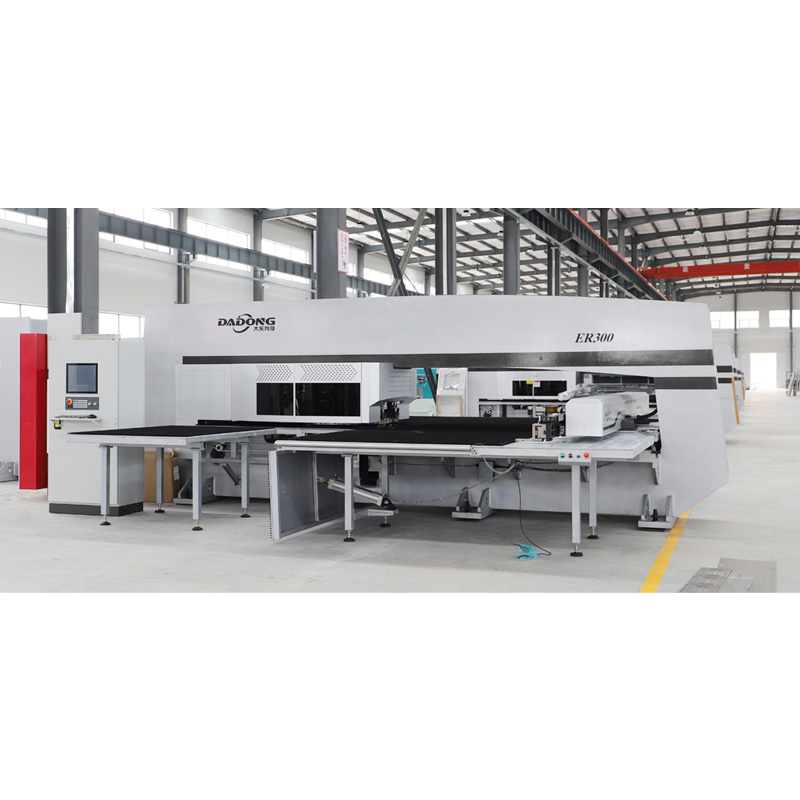

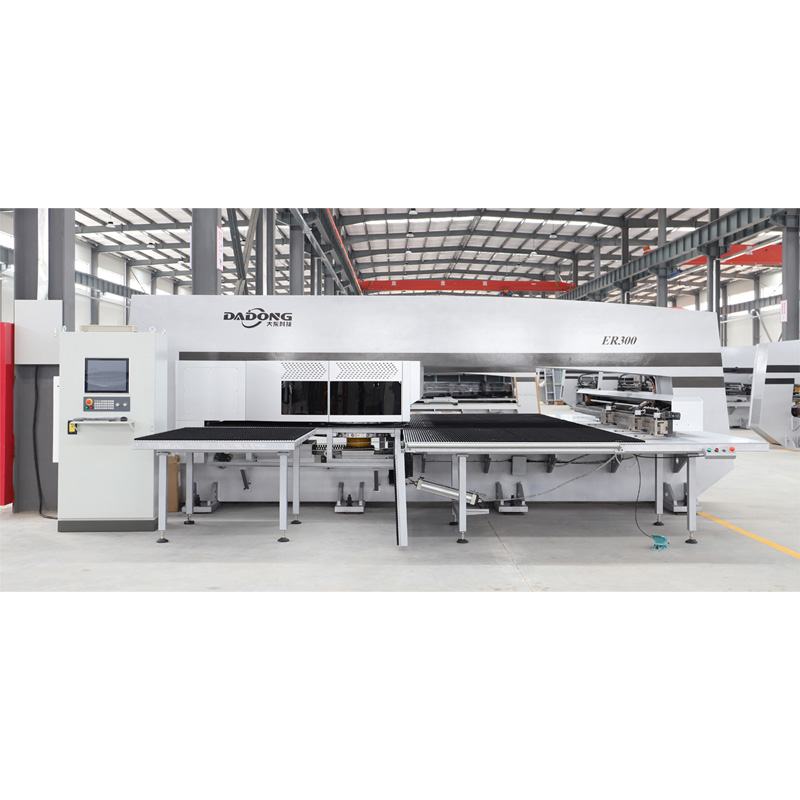

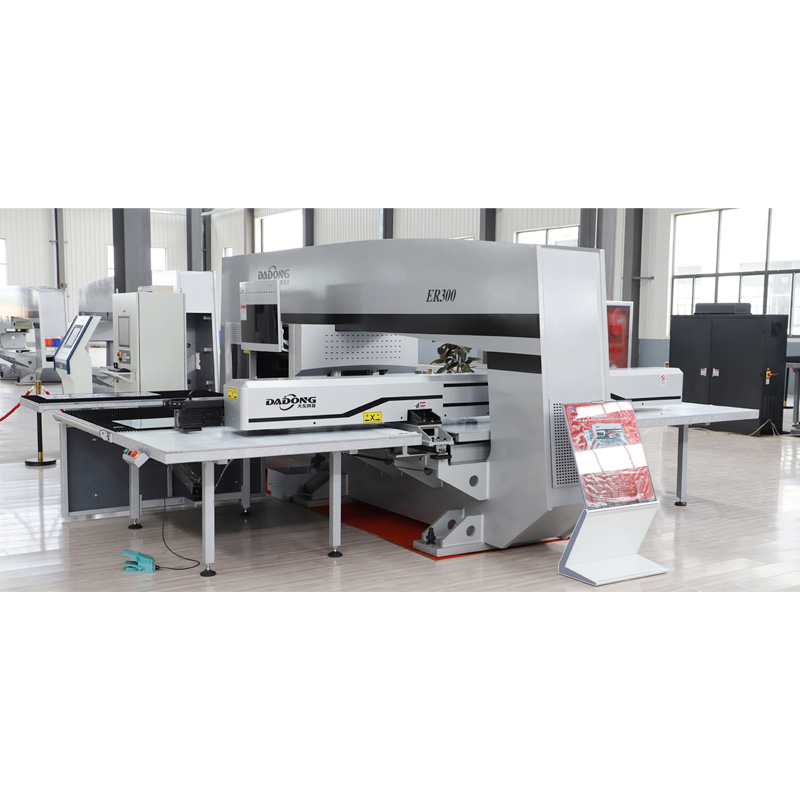

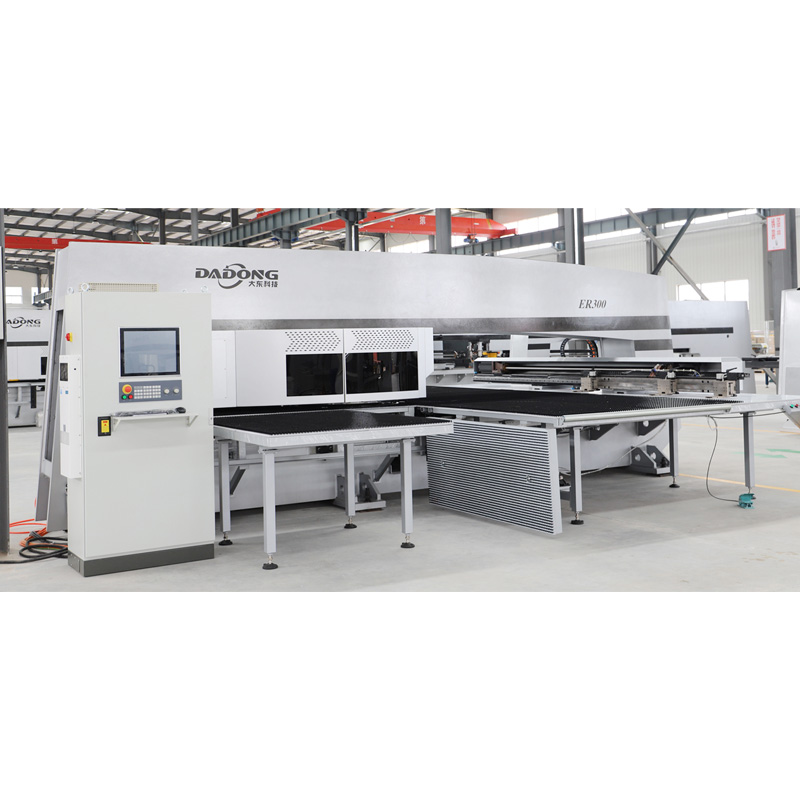

D-ER300

Latest Electro-servo transmission technology, can realize punching, forming, rolling fabrication
Rexroth inside, high compatibility
Remote machine supporting
Energy-saving, average power consumption is 4.5kw/h
Flexible manufacturing choice
The following is an introduction to D-ER300, I hope to help you better understand it.

Latest Electro-servo transmission technology, can realize punching, forming, rolling fabrication
Rexroth inside, high compatibility
Remote machine supporting
Energy-saving, average power consumption is 4.5kw/h
Flexible manufacturing choice

A POWERFUL MACHINE

The eliminated mechanical gap enables a high driving precision, low noise and long service life features. Benefiting from the electric servo punching head, you can punch with an average power consumption of only 4.5 kWH.

Excellent Energy Efficiency

The all electric servo punching head leads to an average power consumption of only 4.5kWH.

Various Working Modes

According to the production requirement, you can selected the best working mode for different workpieces, which can output exactly what you need. Such as speed prior and accuracy prior.

360º Tool Rotation / Auto-index

With auto-index working station, you can punch at whatever angle you like.

Rolling Technology

One of the biggest advatage of servo punching head is the adjustable punching stroke. The punching head can stop at any position. You have have a pefect 360º rib and offset with rolling tools.

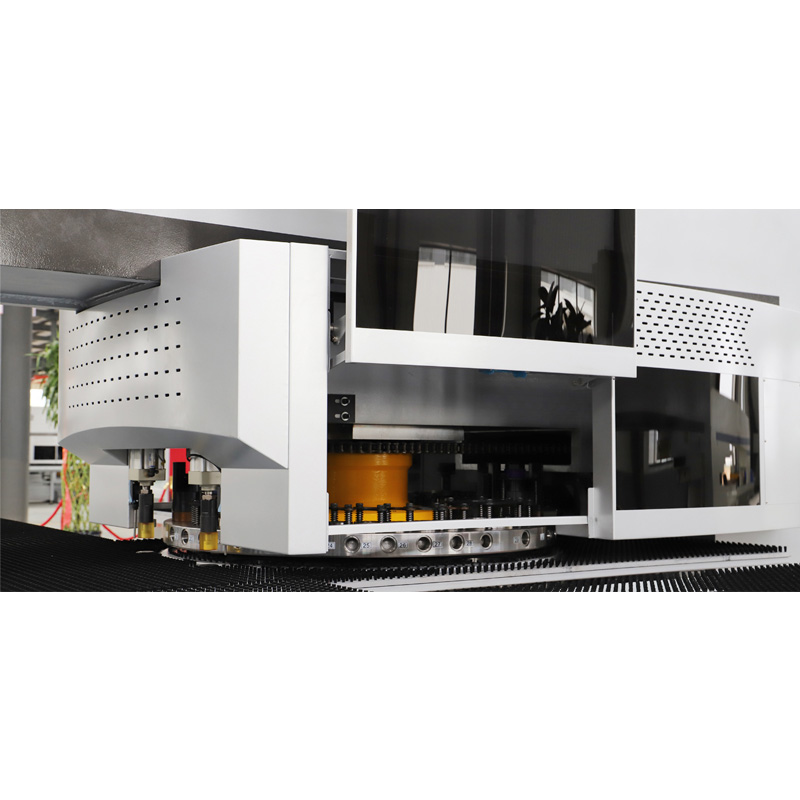

INTELLIGENT SERVO RAM

TURRET OPTIONS

	D-ER300 Standard Format	D-ER300 Large Format
TRANSMISSION METHOD	ALL ELECTRICAL SERVO	ALL ELECTRICAL SERVO
PUNCHING CAPACITY	30 ton	30 ton
MAX. HIT RATE
PUNCHING (PITCH=1MM)	950 HPM	950 HPM
PUNCHING (PITCH=25.4MM)	580 HPM	580 HPM
MARKING	1800 HPM	1800 HPM
WORKING RANGE
X AXIS	5000 mm	5000 mm
Y AXIS	1250 mm	1500 / 2000 mm
MAX. SHEET THICKNESS	6.35 mm	6.35 mm
MAX. WORKPIECE WEIGHT	150 kg	150 kg
TOOL & TURRET
NUMBER OF TOOLS/CLAMPS	32/3	32/3
AUTO-INDEX	2 B (dia <31.7mm)	2 B (dia <31.7mm)
STANDARD TURRET LAYOUT	16A 10B 2BC 2C 2D	16A 10B 2BC 2C 2D
MOVING SPEED
X AIXS	80 m/min	80 m/min
Y AXIS	80 m/min	80 m/min
X Y COMBINED	110 m/min	110 m/min
T AXIS	30 RPM	30 RPM
C AXIS	40 RPM	40 RPM
DIMENSIONS
LENGTH	5170 mm	5670 / 6670 mm
WIDTH	5200 mm	5200 mm
HEIGHT	2300 mm	2300 mm
AVERAGE POWER CONSUMPTION DURING PRODUCTION	4.5 kW	4.5 kW

* All specifications are subject to change without notice.
