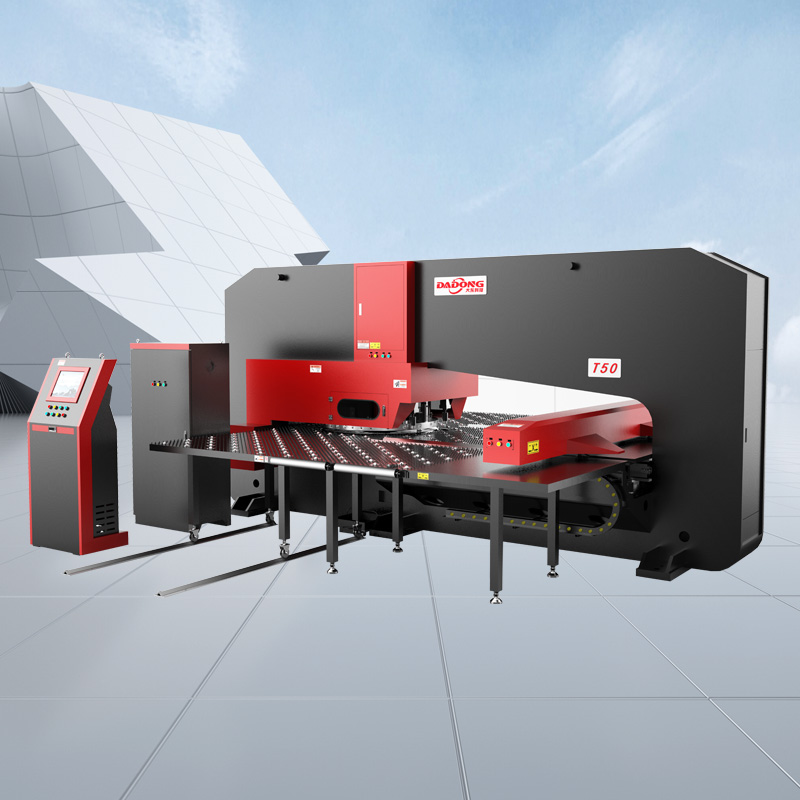

D-T50

50 Tons CNC Punching Machine
More Turret Options (16/24/32)
DARDONTECH Controlling System
Heavy Duty
6mm thickness sheet
The following is an introduction to D-T50, I hope to help you better understand it.

Send Inquiry

Send email to us

Product Description
Technical Details
Technical Data

D-T50

50 Tons CNC Punching Machine
More Turret Options (16/24/32)
DARDONTECH Controlling System
Heavy Duty
6mm thickness sheet

Hot Tags: D-T50, Manufacturers, Suppliers, Factory, China, Quality

Product Tag

Related Categories

FULL SERVO ELECTRO

MECHANICAL FLYWHEEL

HEAVY DUTY MACHINE

Send Inquiry

Please feel free to fill your inquiry in the form below. We will reply you in 24 hours.

Station	Tool size	16 stations	24 stations	32 stations
A	Φ1.5 – Φ12.7	6	12	16
B	Φ12.7 – Φ31.7	6	8	12
C	Φ31.7 – Φ50.8	2	2	2
D	Φ50.8 – Φ88.9	2	2	2

Name	Unit	Specification
Press Capacity	T	50
Frame Construction		O-Frame
Max. Sheet Size (with one reposition)	mm	1250×5000
Max. Sheet Thickness	mm	6
Max. Hole Diameter	mm	Φ88.9
Stroke	mm	40
Max. Hit Rate	hpm	160 (30mm pitch)
Max. Feed Rate	m/min	80
Clamps No.	pcs	2
Re-positioning Cylinder	set	2
No. of Stations	pcs	16□ 24□ 32□
Turret Rotating Speed	rpm	30
Turret Positioning		Double cylinder positioning
Air Pressure	mpa	0.6
Die Form		Mosaic turret, Long guide tool
Punching Accuracy	mm	±0.10
No. of Controlling Axis	pcs	3(X/Y/T)/4(X/Y/T/C)
